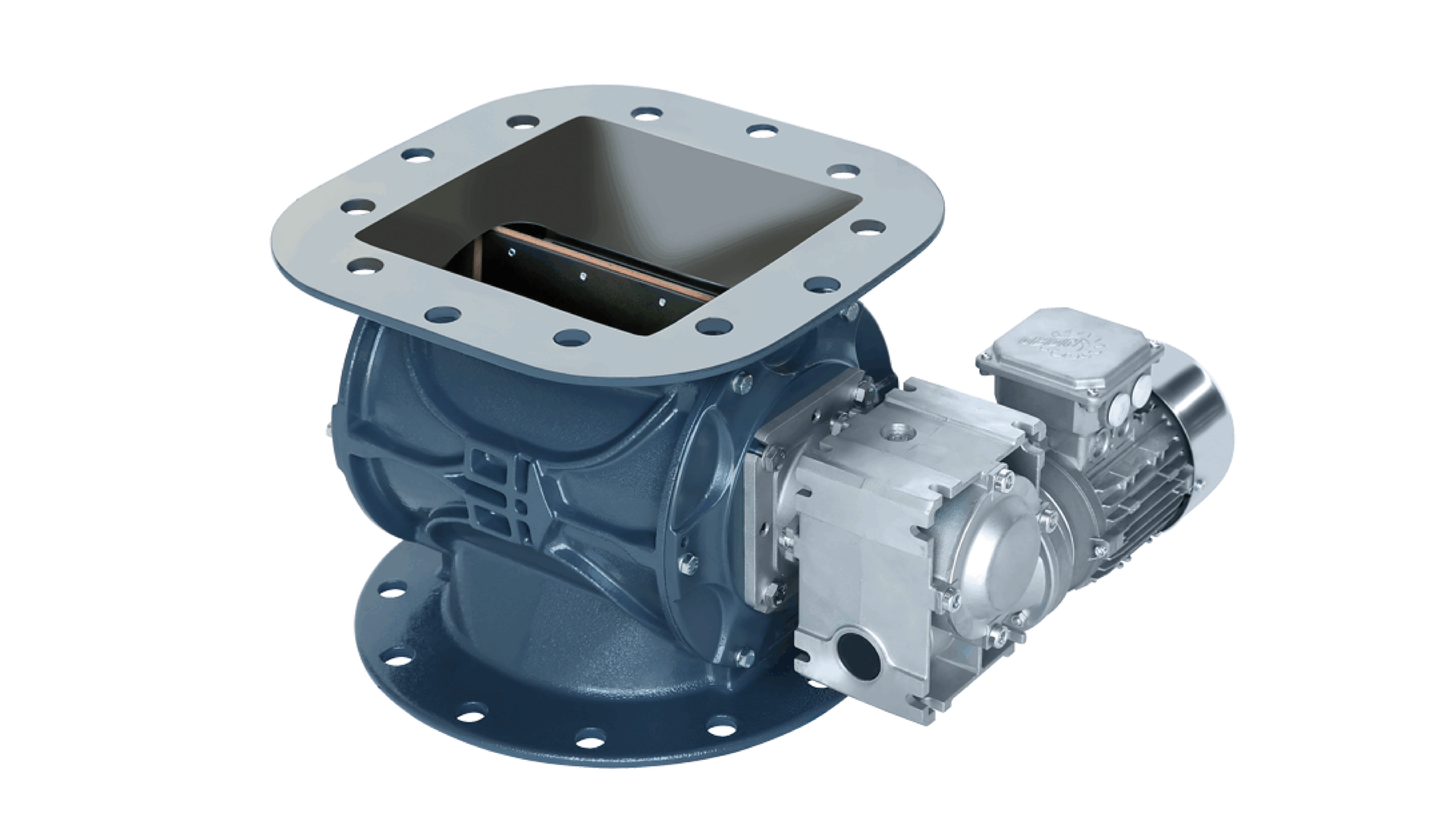

TBMA S-AX dust valves are specially designed to be used under dust filters and cyclones. Applications with a differential pressure up to 500 mbar where the valve primarily functions as an airlock or explosion barrier. The S-AX can be used as an autonomous protective system up to 2,5 bar for products in dust class St1 and St2. (optional)

These airlocks are made from GGG50 Smart-Lite™ nodular cast iron. This type of cast iron material is stronger and much less brittle than conventional cast iron, making it more resistant to shock loads, and has a high corrosion resistance. The installation weight of the S-AX is only 60,5 kg (standard version). The result is a particularly favourable price/quality ratio of this type of valves.

The S-AX valves are equipped with a round and a square connecting flange. This allows the valve to be used as a transition piece from round to square and vice versa.

Applications

TBMA industry applications  S-AX dust lock

In brief

  • Light and compact dust valve
  • For differential pressure up to 500 mbar and easy to process products
  • Body and covers made from high-tech GGG50 Smart-Lite™ nodular cast iron
  • Available in Basic, Standard and APS version
  • Outboard bearing, dust-tight and sealed for life
  • High temperature version up to max. 120 °C (optional)
  • Autonomous protective system up to 2,5 bar for products in dust class St1 and St2 (optional)
  • ATEX 2014/34/EU certified (optional)

Specifications

  • Flange size: DN250 (round/square)
  • Flanges: drilled in accordance with PN10
  • Rotor volume: 9,5 ltr/rev
  • Differential Pressure: 0,5 bar
  • Standard design temperature: 70 °C

Executions

S-AX 250 Basic

  • Rotor: 8 blades with polyurethane blades
  • Direct drive with Helical-worm geared ADT motor reductor

S-AX 250X Standard | Specifications as Basic extended with:

  • Product temperature: 120 °C (option)
  • ATEX 2014/34/EU certified (option)
  • Direct drive with Helical-worm geared Nord motor reductor

S-AX 250X-1 APS | Specifications as Standard extended with:

  • Autonomous protective system up to 2,5 bar for products in dust class St1 and St2

More info

Brochure Rotary Valves View

Dimensions S-AX View

Air leakage diagram S-AX View
