M-AX / R-AX medium duty airlock

Easy discharging, even very poor flowing materials
Double shearing edge on in- and outlet
Available in 4 inlet sizes
Rotor capacity 5,5 up to 34 ltr/rev
Explosionproof up to 2 barg

When to use a M-AX or R-AX?

The M‑AX and R‑AX rotary valves by TBMA ensure reliable dosing and conveying of powders and granules. Due to the robust and compact construction and easy discharging, these valves show optimal performance in various industrial applications.

These medium duty rotary valves are specially designed for applications with limited differential pressure, such as:

low-pressure pneumatic conveying systems
for big-bag discharging
under cyclones and filters

The closed, dust-tight and sealed for life bearings ensure a long lifespan - ideal for continuous production processes.

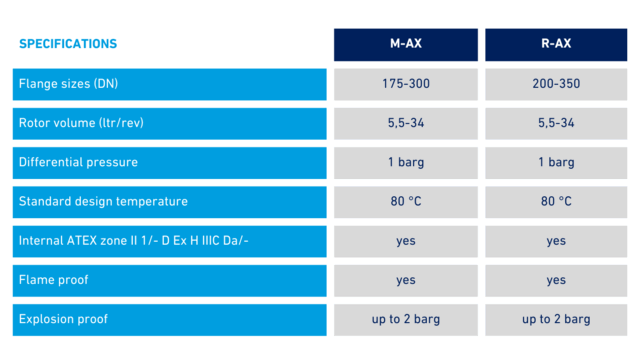

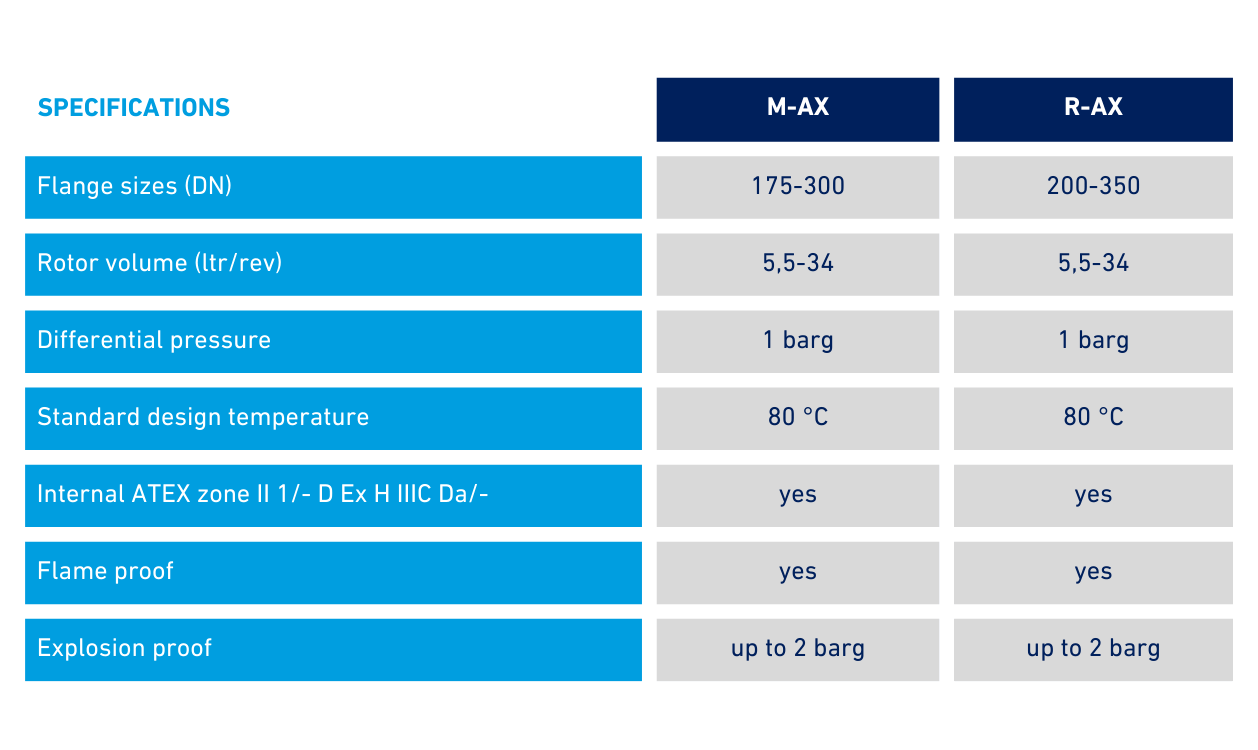

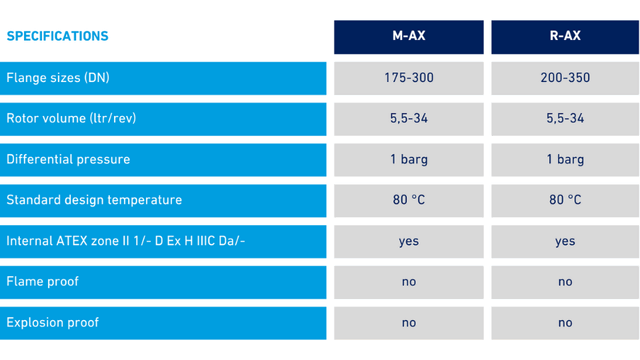

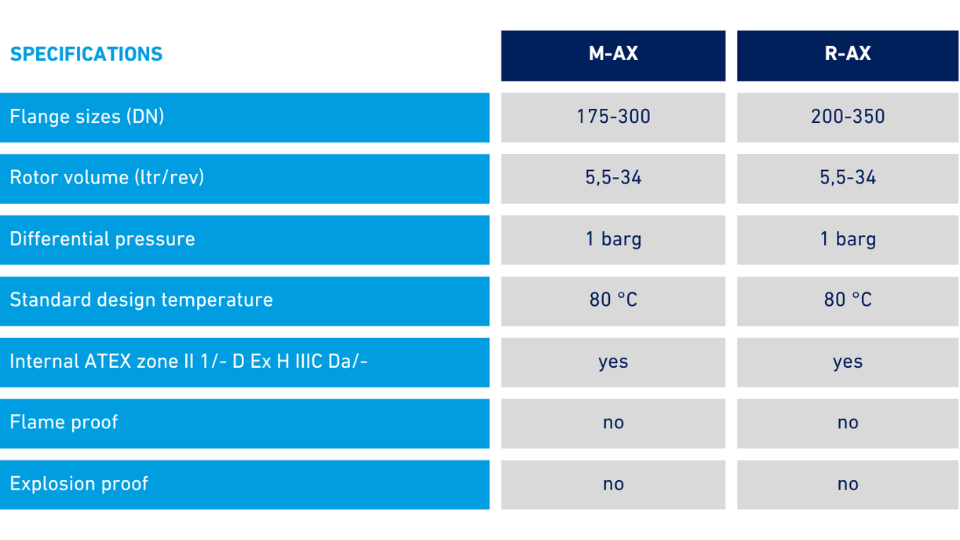

TBMA specifications MAX RAX medium duty rotary valves

M-AX | R-AX medium duty valves

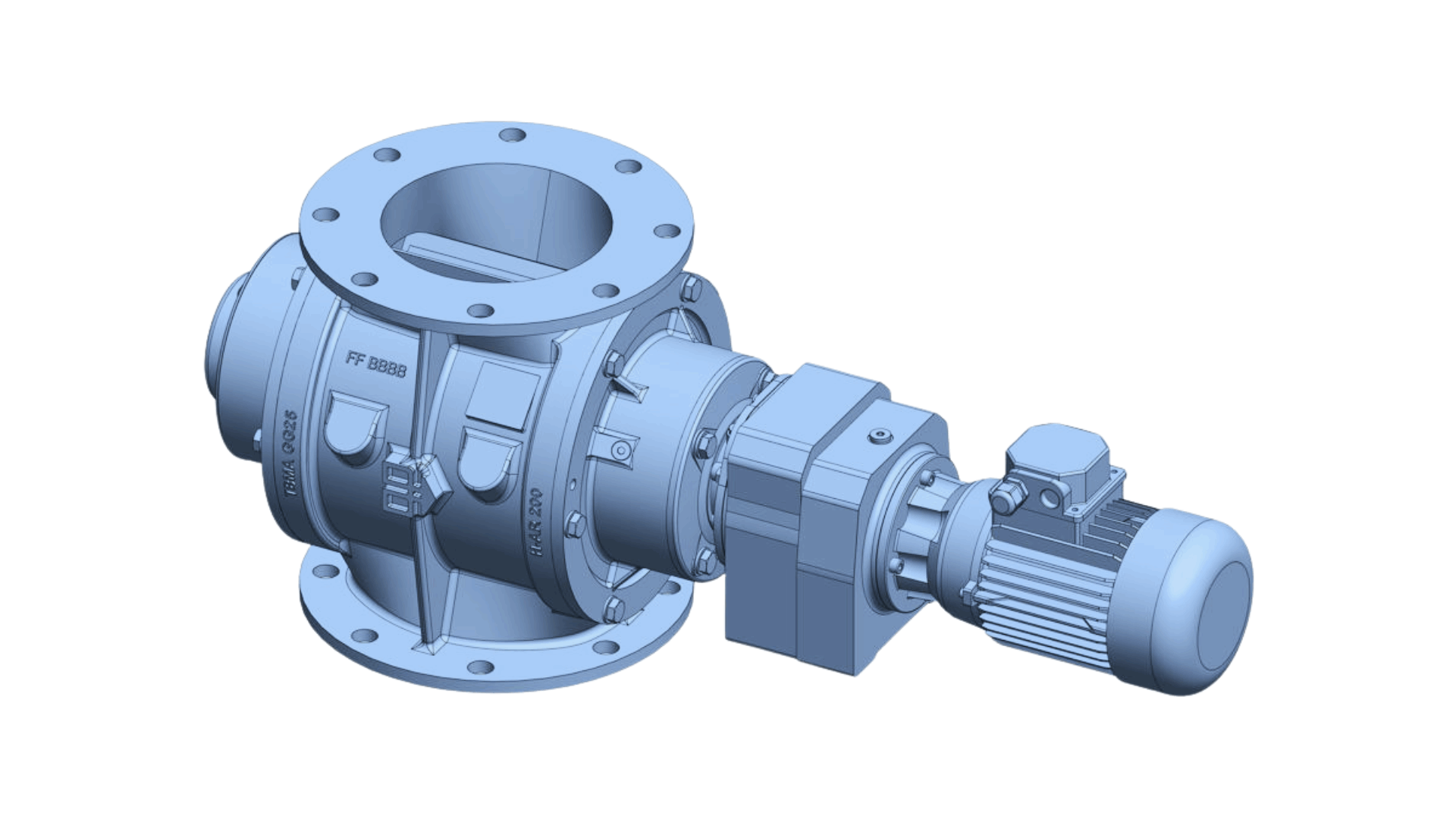

M-AX | The M-AX valves are equipped with round connecting flanges and are available in four sizes.

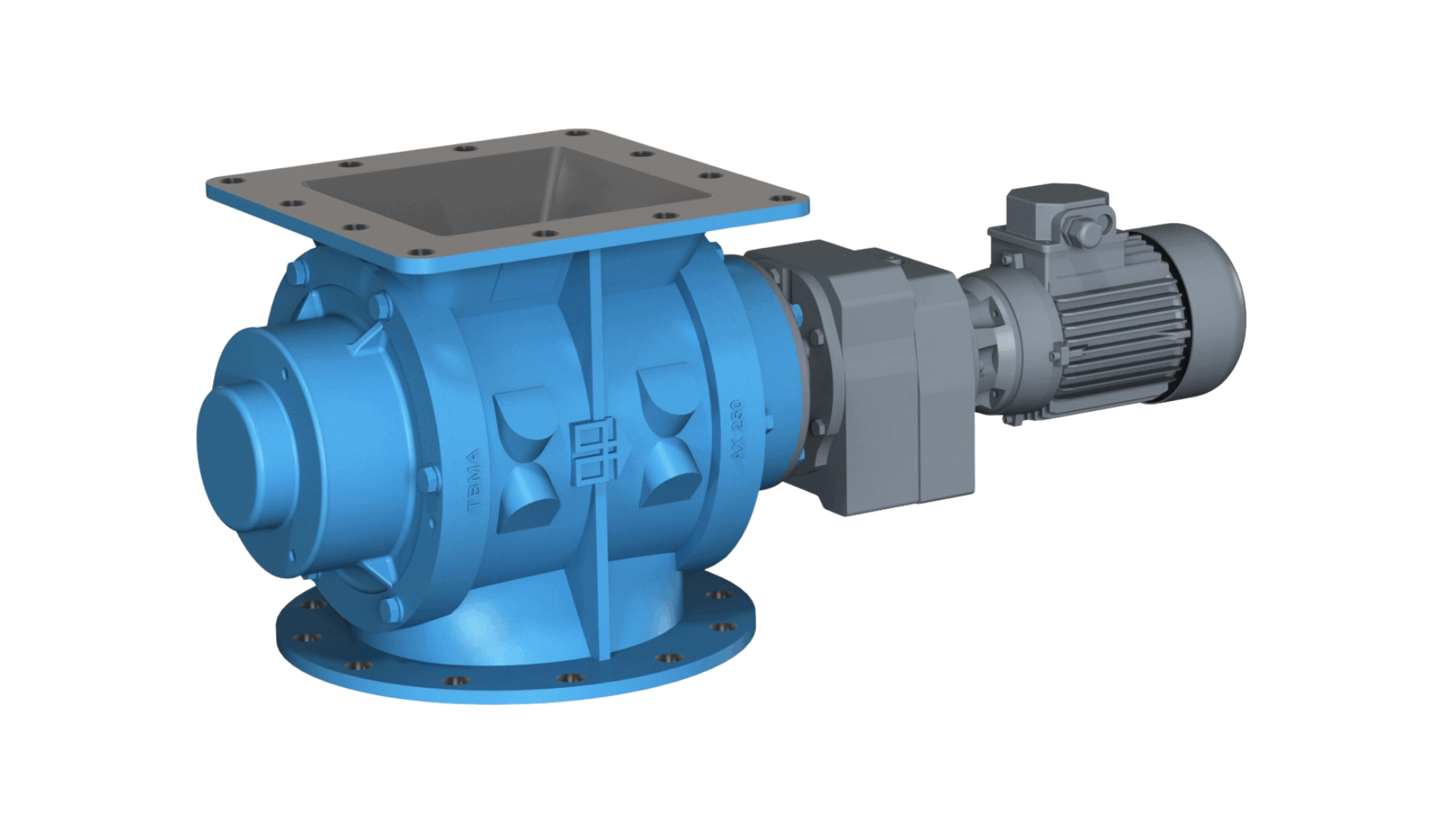

R-AX | The R-AX valves have a relatively large flange diameter in relation to the rotor capacity: it is a smart solution for applications where the flange size has a higher priority than the valve capacity.

R-AX valves are equipped with a round and a square connecting flange, which allows the valve to be used as a transition piece from round to square or vice versa. This is very favourable for the installation height and saves any mounting parts.

M-AX in brief

Round-round flanges
Easy discharging, even very poor flowing materials
Double shearing edge on in- and outlet
Suitable for pneumatic conveying with venturi adaptor
Available in 4 inlet sizes: 175 up to 300 mm
Rotor capacity: 5,5 up to 34 ltr/rev

R-AX in brief

Round-square flanges
Relatively large flange diameter ↔ rotor capacity
Easy discharging, even very poor flowing materials
Double shearing edge on in- and outlet
Central vent connection in body → customer choice which side is in- or outlet
Suitable as transition piece from round → square and vice-versa
Available in 4 inlet sizes: 200 up to 350 mm
Rotor capacity: 5,5 up to 34 ltr/rev

Options M-AX | R-AX

Executions

Corrosion resistant version with stainless steel rotor for chemically aggressive products (3C/3N)
Abrasian resistant version with steel rotor with hardened blades for abrasive products (4C)

Options

Rotation detection
Ventilation bore on the body
Various inlet and vent adaptors
Various venturi en blow-through outlet adaptors

Drives

Direct in-line drive
Bare shaft
