Introduction

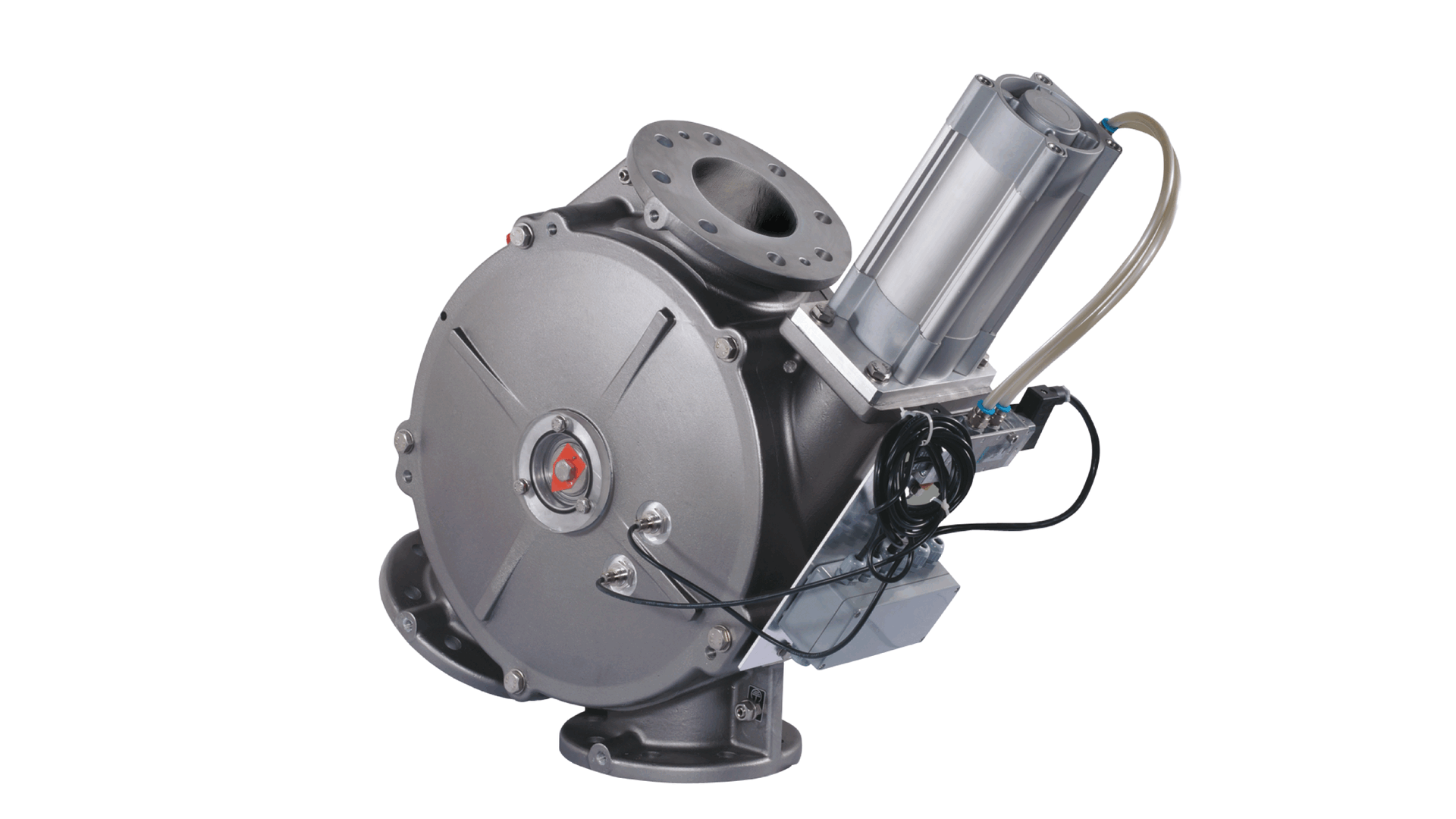

The DTD dual channel plug diverter valves are made of aluminium LM25 grade through a high quality die casting process. All product contact surfaces are lined with 316 stainless steel tubes. The standard seals are FDA approved silicone, which ensures a complete sealing between the body and the plug.

The standard execution diverter with static seals can be used in pressure conveying systems where the pressure is less than 2 barg. When equipped with inflatable seals (optional), the DTD is suitable for systems up to 6 barg. The DTD is supplied as a complete unit with pneumatic actuator and associated components, such as solenoid valve, solenoid coils, junction box and position sensors.

Applications

TBMA plug diverter applications

In brief

  • Dual channel plug
  • Suitable for powders, granules and pellets
  • For diverting or converging
  • Minimum product degradation
  • Food grade silicone seals
  • All product contact surfaces in stainless steel 316
  • Aluminium body, plug and end covers
  • No external moving parts
  • Position indicators
  • Air cylinder operated
  • Easy maintenance
  • Conforming to ATEX 2014/34/EU (optional)

Specifications & Options

Specifications

  • Sizes (7) from 50 to 200 mm
  • DIN / ANSI / JIS drilling patterns
  • System pressure: up to 2 barg with static seals
  • Standard design temperature: 80 °C (max)

Options

  • Thicker stainless steel liner
  • Wear resistant pipe liners
  • High temperature version
  • Dynamic (inflatable) seals up to 6 barg
  • Polyurethane seals (static seal version only)
