TBMA high-duty H-GR blow-through rotary valves are equal to the H-AR valves and are used for direct dosing into pneumatic transport systems in demanding, industrial applications.

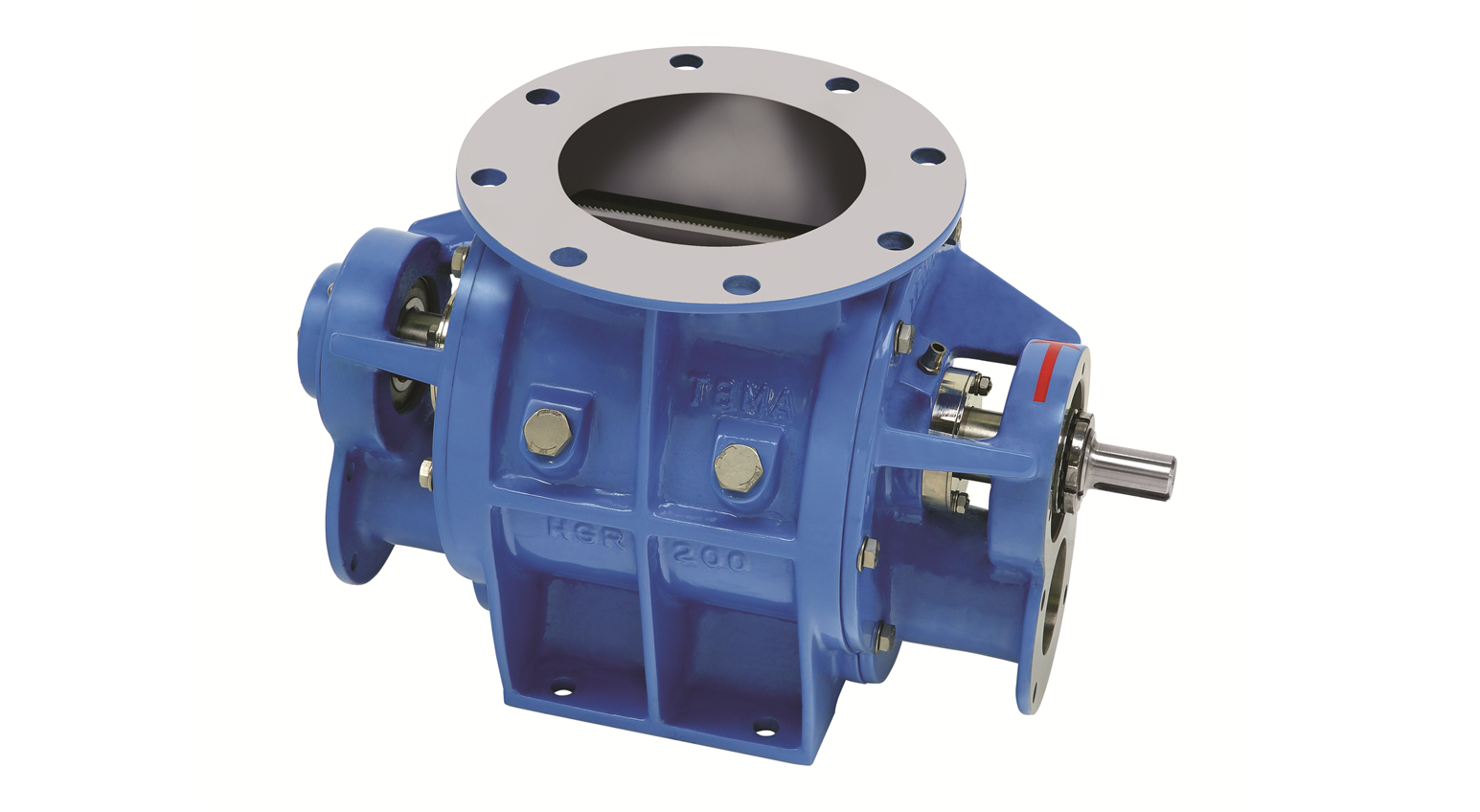

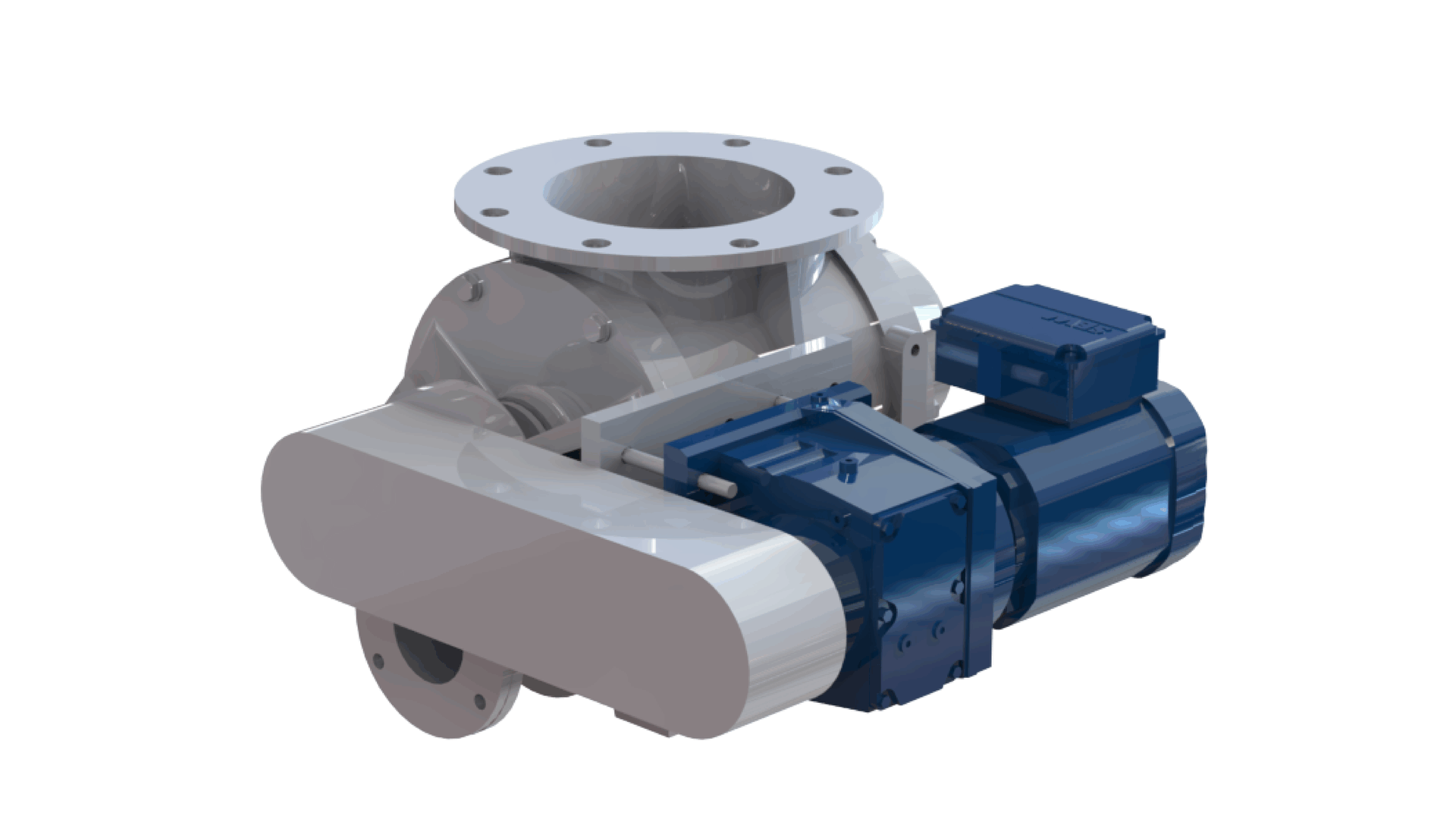

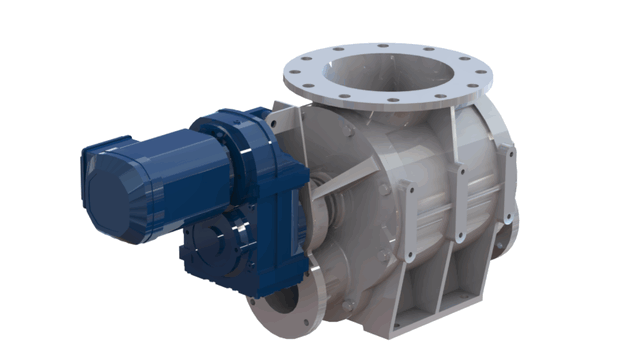

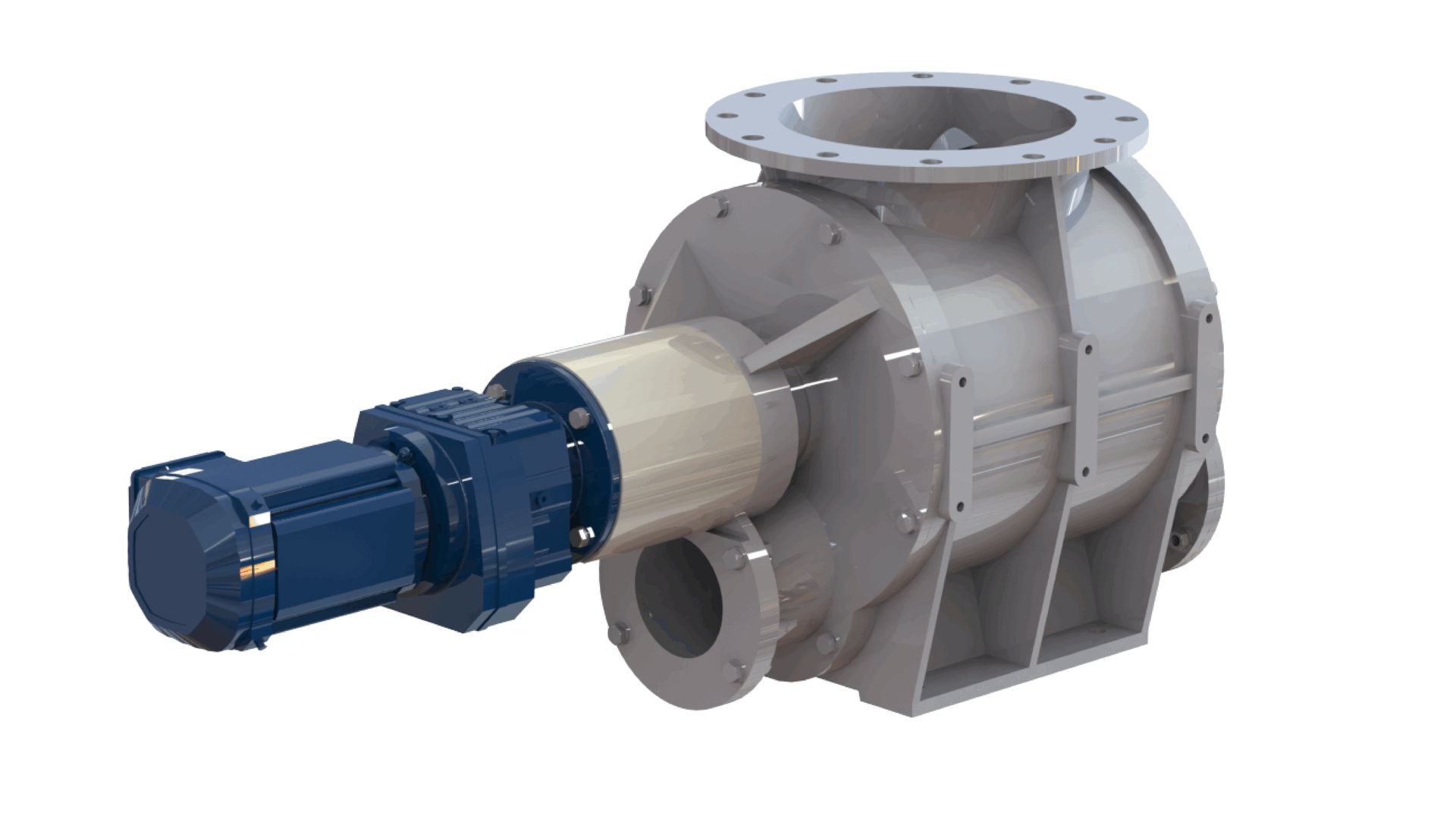

The H-GR valves are equipped with connecting flanges for direct mounting to the pneumatic transport lines on both the transport inlet as well as the transport outlet. The integrated blow-through connections are adapted to the rotor shape, ensuring that the rotor pockets are completely blown empty. The valves are also standard provided with vent holes.

Are you looking for a rotary valve? Use our Rotary Valve Specification Form as a guide to ask for a quotation and send it to sales@tbma.com. We will contact you asap.

Applications

TBMA industry applications H-GR blow through rotary valve

In brief

  • Dosing of powder and granular materials
  • Absorbing differential pressure due to minimal air leakage
  • Protective system up 10 barg for products in dust class St1 and St2 (optional)
  • Suitable for 24/7 industrial applications
  • Outboard bearings, dust tight and sealed for life
  • Differential pressure 1,5 barg
  • ATEX 2014/34/EU certified (optional)
  • Sanitary execution conforming to EHEDG guidelines for dairy and food industry (optional)

Specifications

  • Flange sizes: DN150 – DN350 (round)
  • Flanges: drilled in accordance with PN10
  • Rotor volume: 2,5 up to 58 ltr/rev
  • Differential pressure: 1,5 barg
  • Standard design temperature: 120 °C
  • Flame proof: yes
  • Explosion proof: up to 10 barg

Executions

  • Sanitary execution for dairy and food industry
  • Easy detachable execution (D*)
  • Easy detachable execution with guiding bars (Quick-Clean DG**)
  • Corrosion resistant version for chemically aggressive products (3C/3N)
  • Abrasion resistant version for abrasive products (4C/4TCO)
  • Specially coated version for sticky products
  • High temperature version up to 600 °C
  • Customer-specifiek design

* Demountable | ** Demountable with Guiding bars

More info

Brochure Rotary Valves View

Dimensions H-GR View

Dimensions H-GRD View

Air leakage diagrams high-duty rotary valves View

Rotary Valve Specification Form View
